Zapper Tornado

The Zapper Tornado™ is ASP’s latest scanning sensation, employing cutting-edge Imaging Technology to provide outstanding scanning performance even with worn or difficult to read barcodes.

If you'd like to receive pricing or more information on this product, please click on the "Add to request list" button below.

Please scroll down to see more details about this product!

Qty :



Click here to view the .PDF brochure for this product.

The Zapper Tornado reads most 1D linear-stacked barcodes, including GS1 Databar (formerly known as RSS), making it an ideal scanner and a sound future-proof investment.

Any scanner can read perfect barcode labels, but the Tornado will quickly and accurately read the low contrast, damaged, smudged, poorly-printed barcode labels that are commonly found in the real world, with a huge depth of field – up to 40cm reading distance for 100% UPC/EAN symbols.

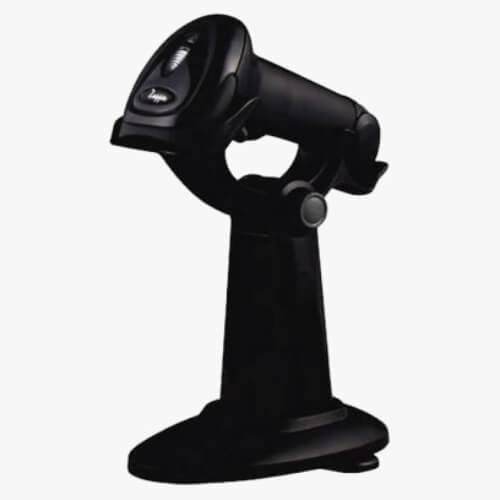

With the ability to automatically switch between hand-held scanning and presentation scanning simply by placing the scanner into the SmartStand or Cradle, the Zapper Tornado™ and is also one of the most versatile scanners available.

The Zapper Tornado is part of ASP’s versatile Zapper Tornado family. See the matrix below for the all members of the family, and click on any model name to find out more.

Zapper Tornado Model Corded Bluetooth 1D 2D Antimicrobial
Zapper Tornado
Zapper Tornado 2D
Zapper Tornado BT
Zapper Tornado 2D BT
Zapper Tornado HC
Zapper Tornado 2D HC
Zapper Tornado BT HC
Zapper Tornado 2D BT HC
SPECIFICATIONS
OPERATIONAL
Light Source 630nm visible LED
Optical System High Performance Linear Imaging Engine
Print Contrast 20% minimum reflective
Minimum Bar Width 3mil (Code 39, PCS 0.9)
Scan Rate 500 scans per second
Operating Distance 40cm on 100% UPC/EAN symbols
60cm on 0.5mm Code 39
Reading Direction Bi-directional
Pitch/Skew ±65º / ±65º
Operating Modes Handheld or Presentation
Symbology Reads most 1D and Linear/stacked barcode symbologies, including GS1 Databar
System Interfaces USB, KBW, RS232
User Interfaces 3 LEDs for power, good read and status indications
Programmable beeper and vibrate mode
PHYSICAL
Height 156mm
Depth 87mm
Width 65mm
Weight 125g (without cable)
Colour Black
Current Operating: Typical 180 mA @5VDC
Standby: Typical 80 mA @5VDC
REGULATORY
EMC RCM, CTick, CE & FCC compliant
Environmental Compliant with RoHS directive
Safety LED Eye Safety IEC60825-1, EN60825-1
ENVIRONMENT
Operating Temperature -10°C to 50°C
Storage temperature -40°C to 70°C
Humidity 5%-95% RH (non condensing)
Ambient Light Injection 0-100,000 LUX
Shock Designed to withstand multiple 1.5m drops to concrete
Environmental Sealing IP41
