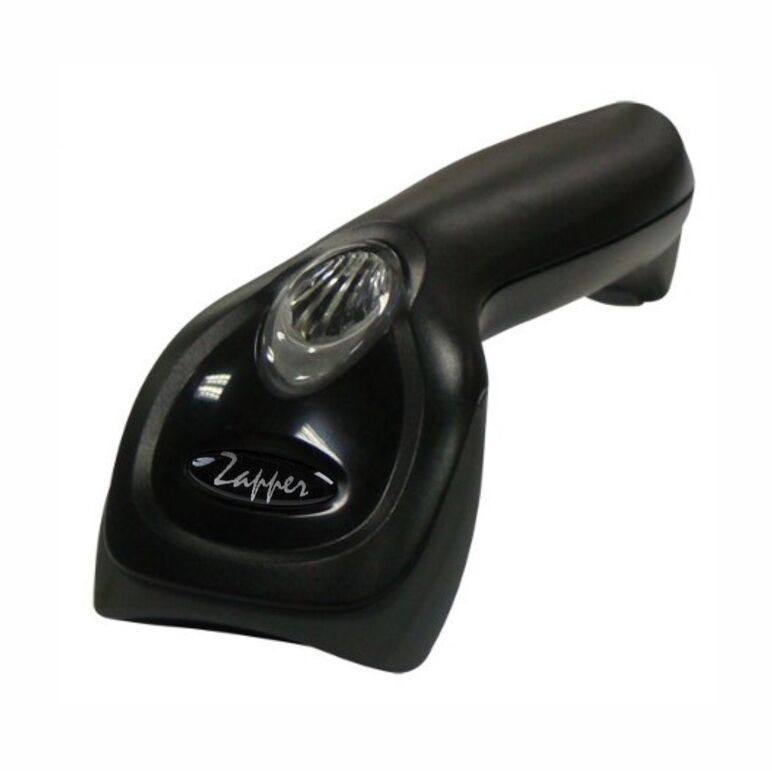

Barcode Zapper

ASP is pleased to introduce the third generation of our Barcode Zapper range!

We’ve retained the famous Barcode Zapper name, but introduced a sleek and lightweight design that fits well in most hands for intuitive point-and-shoot scanning, with an innovative trigger switch and indication design. And we’ve increased the performance too!

The new Barcode Zapper is capable of reading high-density barcodes on contact, and has a superior reading range of more than 30cm on 100% UPC/EAN symbols.

If you'd like to receive pricing or more information on this product, please click on the "Add to request list" button below.

Please scroll down to see more details about this product!

Qty :


Click here to view the .PDF brochure for this product.

The new Barcode Zapper uses state-of-the-art Imaging Technology inside, with a sleek yet lightweight form factor outside. It not only provides superior reading performance, but also delivers easy-to-use ergonomics and modern appearance. The characteristics of reliability, efficiency and outstanding cost-performance make the new Barcode Zapper well-suited for a broad range of applications and environments, especially for those small to medium sized business. The new Barcode Zapper is the ideal solution for streamlining workflow while boosting productivity.

Modern design and durable construction

Designed to allow intensive use all day long, the new Barcode Zapper’s ergonomic handle grip and big trigger button provide maximum comfort without compromising the sleek-yet-modern form factor. The durable housing ensures that the new Barcode Zapper can survive multiple 1.5-metre drops to concrete; thus providing long lasting reliability and performance.

Superior performance on both contact and distant reading

Thanks to new Imaging Technology, the new Barcode Zapper is capable of reading low contrast, damaged, smudged and poorly-printed barcodes labels quickly and accurately, and can read barcodes from contact up to a distance of 45cm.

  • Perfectly suited to retail and general purpose applications
  • For libraries, it reads ISBN/SCIS and 13 digit ISBN
  • Aggressive and precise linear imaging
  • Unsurpassed readability on damaged, poorly-printed, smudged or low contrast barcodes
  • Scanning range is from contact up to 45cm
  • Fully programmable
  • Able to withstand multiple 1.5 metre drops to concrete
  • Two year factory warranty (one year on cable)
  • RoHS Compliant
Light Source 630nm visible LED
Optical System High Performance Linear Imaging Engine
Print Contrast 20% minimum reflective difference
Minimum Resolution 3mil (Code 39, PCS 0.9)
Scan Rate Dynamic scanning rate up to 300 scans per second
Operating Distance Up to 33cm on 100% UPC/EAN symbols
Up to 45cm on 0.5mm Code 39
Reading Direction Bi-directional (forward or backward)
Pitch/Skew ±65º / ±65º
Operating Modes Toggle, Trigger, Force, Level, Flash, Diagnostic, Alternative, Low power, Presentation
System Interfaces USB, RS232, KBW
User Interfaces Blue LED indications
Programmable beeper
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Post al Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formerly RSS) Linear, GS1 DataBar-14 (GTIN-14), GS1 DataBar Truncated, GS1 DataBar Limited, GS1 Dat aBar Expanded
Dimensions (mm) 165mm (L) x 64.7mm (W) x 38.7mm (D)
Weight 106g
Colour Black
Input Voltage 5VDC ±10%
Current Operating: Typical 170mA @5VDC
Standby: Typical 75mA @5VDC
EMC RCM, CTick, CE, BSMI, KC, VCCI & FCC compliant
Environmental Compliant with RoHS directive
Safety LED Eye Safety IEC62471, Exempt Group
Operating Temperature -10°C to 50°C
Storage Temperature -40°C to 70°C
Humidity 5%-95% RH (non condensing)
Ambient Light Injection 0-80,000 LUX
Shock Designed to withstand multiple 1.5m drops to concrete
Environmental Sealing IP41
