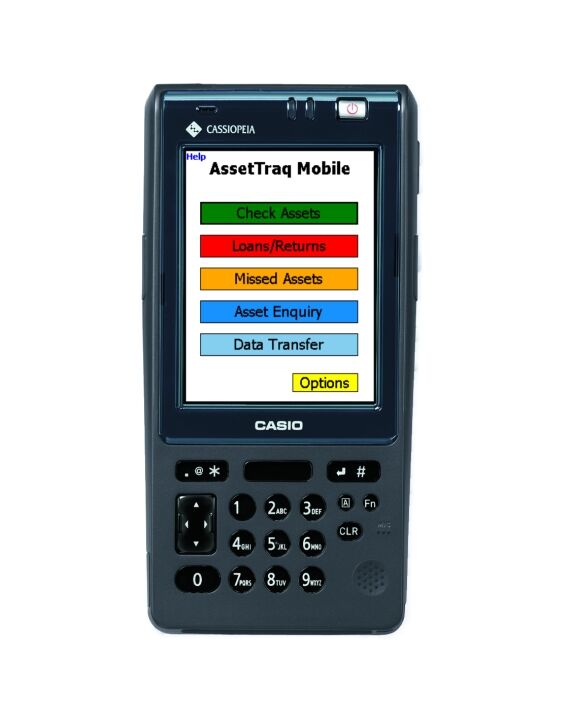

The Casio IT-600 series is a rugged, water and dust resistant mobile computer. Featuring an integrated high-speed laser scanner, with optional 1 megapixel digital camera, it is adaptable for use in a variety of business environments including retail and parking enforcement.
- Improved productivity with the latest laser scanning engine
- True mobility and secure connections
- Rugged casing survives the elements in extreme environments
- Original CASIO digital technology
- Windows CE 5.0 offers reliable and real time capabilities
If you'd like to receive pricing or more information on this product, please click on the "Add to request list" button below.
Please scroll down to see more details about this product!
Click here to view the brochure for this product.
Improved productivity with the latest laser scanning engine
One of the main benefits of the IT-600 series is the enhanced laser scanning performance which enables the efficient reading of most industry standard 1D symbologies.
Other features which make the IT-600 second to none in scanning performance are the beam swing angle control function for precision bar code scanning, vibration scan confirmation for use in noisy environments, a learning function for improved efficiency and the choice of any one of three scan trigger keys depending on the operator’s preference.
True mobility and secure connections
Boasting a wide array of functions essential for true mobility, the IT-600 is available with a built-in WLAN module (IT-600M30R/M30CR only).
The terminal has advanced, industry standard, encryption and authentication capabilities and operates at high speed in real time communications situations using the IEEE802.11b standard.
These communication capabilities allow the terminal to seamlessly connect to remote host computers, making it ideally suited to warehousing and retail applications where secure access to real time information is crucial. Bluetooth Ver. 1.2 comes as standard with all models.
Furthermore, the large capacity battery (3,700 mAh) and low-power consumption design combine to deliver long battery life, with up to 20 hours of continuous operation possible on a single charge.
Rugged casing survives the elements in extreme environments
The IT-600 is designed and built for maximum durability in all weather conditions and for harsh handling by users. To ensure that the terminal is durable against dust, water and hard impacts, the IT-600 has been subjected to a series of severe assessment tests complying with International Standard IEC60529.
Consequently, the IT-600 meets protection level 5 for resistance to dust and protection level 4 for water-splash resistance.
As part of the extensive drop testing procedure, the IT-600 is dropped onto a concrete floor from a height of 1.2 meters with no adverse effects to its operation expected.
Original CASIO digital technology enables capturing of images in all light conditions
The supersensitive CCD 1.0 mega pixel digital camera (IT-600M30C/M30CR only) enables the capturing of full colour images.
Using optional software based on CASIO’s proprietary digital technology, pictures can be taken in low-light environments and yet come out bright and detailed even when no flash is used.
This feature is especially useful in car parking enforcement situations during the evening where little natural light is available or in any vertical application that requires image evidence.
Windows CE 5.0 offers reliable and real time capabilities
The IT-600 uses Microsoft Windows CE 5.0 as its operating system. This is an open, scalable, 32-bit operating system (OS) that makes reliable, real time communications with advanced Windows technologies possible.
Windows CE allows you to build a wide range of innovative and flexible applications and solutions with the IT-600.
Superb quality VGA resolution colour screen
The large, transflective VGA (480 x 640 dots), TFT color LCD with 65,536 colours allows you to develop applications with incredibly detailed screens that are still comfortable to view for a full working shift. It is particularly suited to browser based applications.
The LCD screen incorporates an LED backlight which reduces power consumption and improves resistance to harsh impacts including drops from a height of 1.2 meters to concrete.
This combination of features means that the IT-600 can be used with confidence in all lighting conditions and in many harsh environments.
miniSD card slot provides an additional storage option
A miniSD storage card slot is integrated inside the battery compartment of the IT-600. This enables the installation of extra storage for various uses such as the back-up of mission critical data. The IT-600 also has approximately 60MB of on-board Flash storage which can be used with CASIO’s auto-recovery utility to ensure that users never lose the application or configuration settings from the terminal.
|Casio IT-600 Specifications|
|CPU||Intel® PXA270 Application Processor
(Max. 520 MHz)
|OS||Microsoft®Windows®CE 5.0 English Version|
|F-ROM||128 MB (User area: Approx.60MB)|
|Display||Type||3.7-inch transflective TFT colour LCD
|Resolution||480 x 640 dots|
|Indicator||1 x 2-colour LED , 1 x 3-colour LED|
|Input||Keyboard||21 keys (including Numeric keys, Center key, Cursor keys)|
|Trigger key||3 keys (Left, Right and Center)|
|Laser scanner||Type||Semi-conductor laser light|
|No. of scanning||100 per second|
|Readable distance||Approx. 40 to 300 mm|
|Readable width||Max. 40 mm (at depth 40 mm)/
Max. 250 mm (at depth 300 mm)
|Readable symbologies||EAN, UPC-A/E, NW-7, CODE39, CODE93, CODE128/EAN128, ITF, MSI, IATA, Industrial 2 of 5, RSS-14, RSS Limited, RSS Expanded|
|Interface||Bluetooth®||Bluetooth® Version 1.2 compatible|
|Infrared||IrDA 1.3 compatible
(Maximum: 4 Mbps, up to 30cm distance)
|Serial||USB version 1.1 (Host/Client)|
|WLAN (IT‑600M30R or M30CR)||Standard||IEEE802.11b (Maximum: 11 Mbps),
IEEE802.11g (Maximum: 54 Mbps)
|Security||WEP, TKIP, MS-PEAP, EAP-TLS|
|Digital camera (IT‑600M30C or M30CR)||CCD sensor||Approx. 1.0 mega pixels|
|Buzzer||Sound volume||2 sound volumes|
|Vibrator||Comes as standard|
|Power||Operation||Lithium-ion battery pack (HA‑D20BAT or HA‑D21LBAT)|
|Memory backup||Lithium battery (rechargeable) on board|
|Battery capacity||HA‑D20BAT1 850mAh
|Operating period||IT‑600M30 or IT‑600M30C||IT‑600M30R or IT‑600M30CR|
|Approx. 11 hours (HA‑D20BAT)*1
Approx. 22 hours (HA‑D21LBAT)*1
*1 based on the ratio of “standby: calculation:scan” at 20:1:1 *3
|Approx. 10 hours (HA‑D20BAT)*2
Approx. 20 hours (HA‑D21LBAT)*2
|Memory back up period||RAM: Approx. 10 minutes,
Clock : Approx. 72 hours
(Assuming that the Lithium-ion battery pack is fully charged and at room temperature)
|Environment||Operating temperature||-10°C to +50°C|
|Storage temperature||-20°C to +60°C|
|Operating humidity||10% to 80%RH (no condensation)|
|Storage humidity||5% to 90%RH (no condensation)|
|Dust/Water-splash proof||IP54 level (compliant with IEC60529)|
|Drop durability||From 1.2 m in height onto concrete floor|
|Dimensions and weight||Dimensions||Approx. 82 (W) x 166 (D) x 23 (H) mm|
|Weight||Approx. 290 g|
|Application development tool||eMbedded Visual C++ 4.0, Visual Studio .NET 2003
(w/WindowsCE .NET Utilities v1.1 for Visual Studio .NET 2003)
|EMC, EMI||EN55022/EN55024, (FCC Part 15B)*4|
|WLAN type approval||EN300328/EN301489/EN50371, (FCC Part 15C)*4|
|Bluetooth®type approval||EN300328/EN301489, (FCC Part 15C)*4, Bluetooth logo certification|
*3 When the CPU speed is set to auto power save mode and the backlight is turned off.
*4 Relevant assessment tests have been carried out by an accredited testing body.
CASIO is a registered trademark of CASIO Computer Co., Ltd. in Japan.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the USA and/or other countries.
The BLUETOOTH registered trademark is owned by Bluetooth SIG, Inc., U.S.A. and licensed to CASIO Computer Co., Ltd.
Cradles, Chargers, and Batteries
Connect with a Host-PC by the USB interface.
Connect with a Host-PC by the LAN interface or USB interface.
Charge two batteries at a time.
Rated input: 100 to 240VAC, 50/60Hz
Rated output: 12VDC 3.5A
Lithium-ion rechargeable battery pack (1,850 mAH)
Lithium-ion rechargeable battery pack (3,700 mAH)
Optional pistol grip to be installed on the rear of the IT-600.
Optional hand belt to be installed on the rear of the IT-600.
