RK25 Series Rugged Mobile Computer

Mobile Computer-RK25 Series

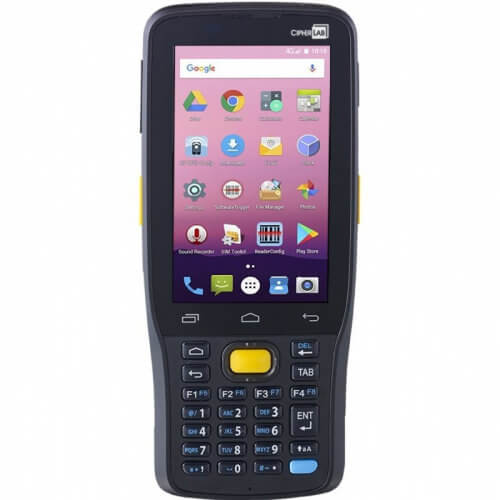

CipherLab RK25 is equipped with numeric keypads to fulfill diverse user behaviors, especially for those who are used to non-visual data entry operation, working in rugged outdoor conditions, and need custom configured buttons. Evolving from smartphones, its 4” display with multi-touch panel also ensures readability to further accomplish its friendly operation design. Built for data intensive environments, the RK25 is crafted with up-to-date features of the latest quad-core 1.4 GHz processor and IEEE 802.11 a/b/g/n/ac dual band communication to allow users to simplify complicated job processes. On top of that, the RK25’s industrial ruggedness and comprehensive offering in accessories and software empower users to thrive in their daily tasks.

The RK25 UHF RFID reader is specially made to upgrade the RFID function of RK25. User can just simply attach the RK25 device to the RK25 UHF RFID reader whenever RFID is needed. It can capture RFID tags at the distance of over 8 m and delivers a read rate at 700+ tags/sec, providing best-in-class RFID reading performance. Users can also enjoy the fast and easy application deployment by utilizing CipherLab EZConfig and EZEdit.

CipherLab RK25		Specifications
Performance	Operating system	Android 7.0 with GMS (Upgradeable to Android 9.0 with GMS) / Android 9.0 with GMS
	CPU	Quad-core 1.4 GHz Cortex A53
	Memory	2GB RAM / 16GB Flash
	Expansion	Micro SD card slot with SDHC support (up to 32GB)
	SIM / SAM	1 SIM slot and 1 optional SIM/SAM slot
	Operating power	Replaceable and rechargeable 3.8V, 4000 mAh Li-Polymer battery
	Working hours¹	Minimum 8 hours (2D imager)
	Alert	Tri-color LEDs, vibrator, speaker
	Interface supported	USB 2.0 OTG and charging contact
Wireless Communication	WWAN²	GSM: Quad Band (850/900/1800/1900Mhz) TD-SCDMA: Band 34, Band 39 WCDMA: Band 1, Band 2, Band 5, Band 8 TDD-LTE: Band 38, Band 39, Band 40, Band 41 FDD-LTE: Band 1, Band 2, Band 3, Band 5, Band 7, Band 8, Band 20
	WLAN	IEEE 802.11 a/b/g/n/ac/e/d/h/i/r/k/v/w dual band
	WLAN security	WPA, WPA2, WEP, TKIP, AES, PEAP, TTLS, TLS, PWD, SIM
	WPAN	Bluetooth® Class II, V4.0 / V4.1/ V4.2 BLE, V2.1 with Enhanced Data Rate (EDR)
	Bluetooth® profile	GAP, SDP, HSP, SPP, GOEP, OPP, HFP, PAN, A2DP, AVRCP, GAVDP, HID, PBAP
	GPS³	GPS, Galileo, GLONASS, BeiDou, AGPS
Data capture	Barcode scanning	Linear imager / 2D imager / Mid-Range 2D imager
	RFID (Optional)	HF RFID 13.56 MHz frequency which supports ISO14443 TYPE A,B, and ISO15693 Support NFC (Peer-to-Peer, Card Reader, Card Emulation)
	Camera (Optional)3	Autofocus 8 megapixels with LED flash
Physical characteristics	Display	4″ WVGA 480 (W) x 800 (H), Corning Gorilla Glass, TN LCD
	Touch panel	Capacitive touch with stylus, bare fingertip, and gloved fingertip inputs
	Interactive Sensor Technology	Accelerometer, light sensor, proximity sensor, e-compass, gyroscope
	Keypad	25-key/28-key numeric keypads with assignable keys, volume up and down keys, left and right trigger keys, power key
	Audio	Speaker, dual array microphones with echo and noise cancellation
	Size (LxWxH)	168 x 73.8 x 26 mm
	Weight	292g (2D imager with battery)
User Environment	Operating temperature	-20°C to 50°C / -4°F to 122°F
	Storage temperature	-30°C to 70°C / -22°F to 158°F
	Humidity (non-condensed)	Operating 10% to 90% / Storage 5% to 95%
	Impact resistance	Standard: 1.5 m (5 ft.) multiple drops onto concrete, With rubber boot: 1.8 m (6 ft.) MIL-STD-810G IP65 / 300 tumbles at 0.5 m
	Electrostatic discharge	±15 kV air discharge, ±8 kV contact discharge
	Regulatory compliance	CE, NCC, CCC, SRRC, ANATEL, BIS, WPC, RoHS, REACH, WEEE, ErP, China RoHS
Accessories	Standard	Hand strap, Charging and communication cradle, Charging and communication snap-on cable, Pistol grip, Rubber boot, Vehicle cradle, 4-slot battery charger, UHF RFID reader, 5-slot Terminal Charging Cradle
Option		Multi-slot Ethernet cradle
Development support		Android SDK, reader API, SAM API, HTML 5 API
Application software		CipherLab: Reader Configuration, Button Assignment, Wireless Mobile Deployment System (WMDS), Android Deployment Configurator (ADC) & BarcodeToSetting, Software Trigger , Terminal Emulation, App-Lock, Airlock Browser, Signature Capture, HF RFID Configuration Third party: SOTI (generic version), Xamarin Binding
Warranty		1 year

1. Minimum 8 hours under WLAN and 2D scanning per 20 seconds, LCD 50% backlight and speaker on (volume is default) at 25°C, RFID off / Bluetooth® off / IEEE 802.11a/b/g/n/ac on. The test is based on one broadcasting packet per second.

2. The mobile computer has received general telecommunication certification for data communication. Please check with your local carrier for the optimum operating efficiency.

3. GPS function is only available for WWAN models, and NFC is optional for only 28-key models.
